Mercado Medic, Specialist Electric X-Ray Chair for Radiology Departments, Real 8100

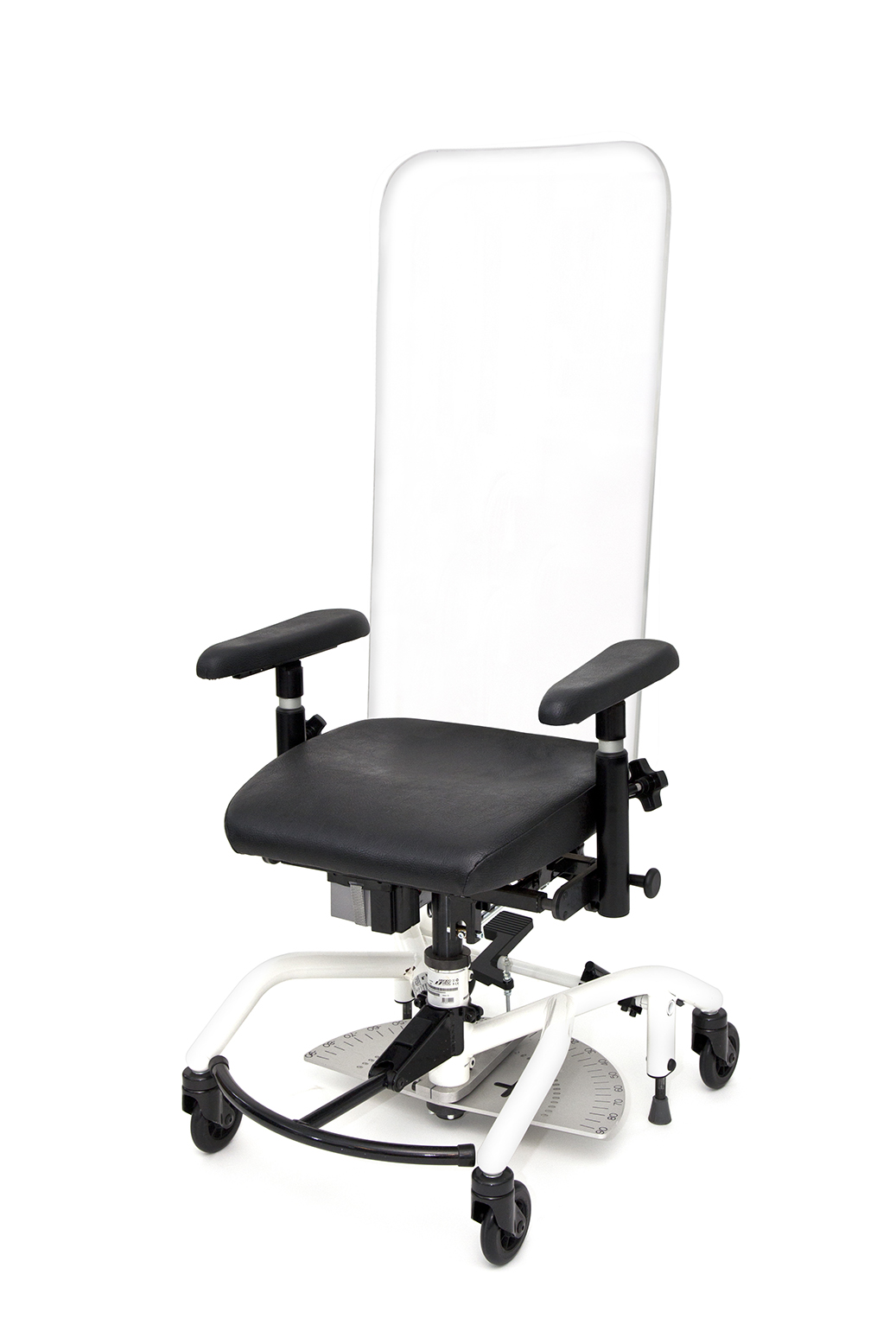

The REAL 8100 X-Ray Chair is a specialist medical chair designed to support safe, comfortable and efficient patient positioning during radiography and X-ray examinations. Manufactured in Sweden by Mercado Medic, this electrically operated chair combines ergonomic design with adjustable positioning functions to help healthcare professionals carry out examinations efficiently, particularly when treating patients with reduced mobility. mercado-medic.co.uk

Designed with both patient comfort and clinical practicality in mind, the REAL 8100 allows healthcare professionals to adjust the chair’s height and positioning using a remote control. This enables adjustments to be made from a distance, helping staff position patients without unnecessary physical effort. Depending on the selected configuration, the chair can also incorporate electric seat tilt and backrest adjustment to accommodate different examination requirements.

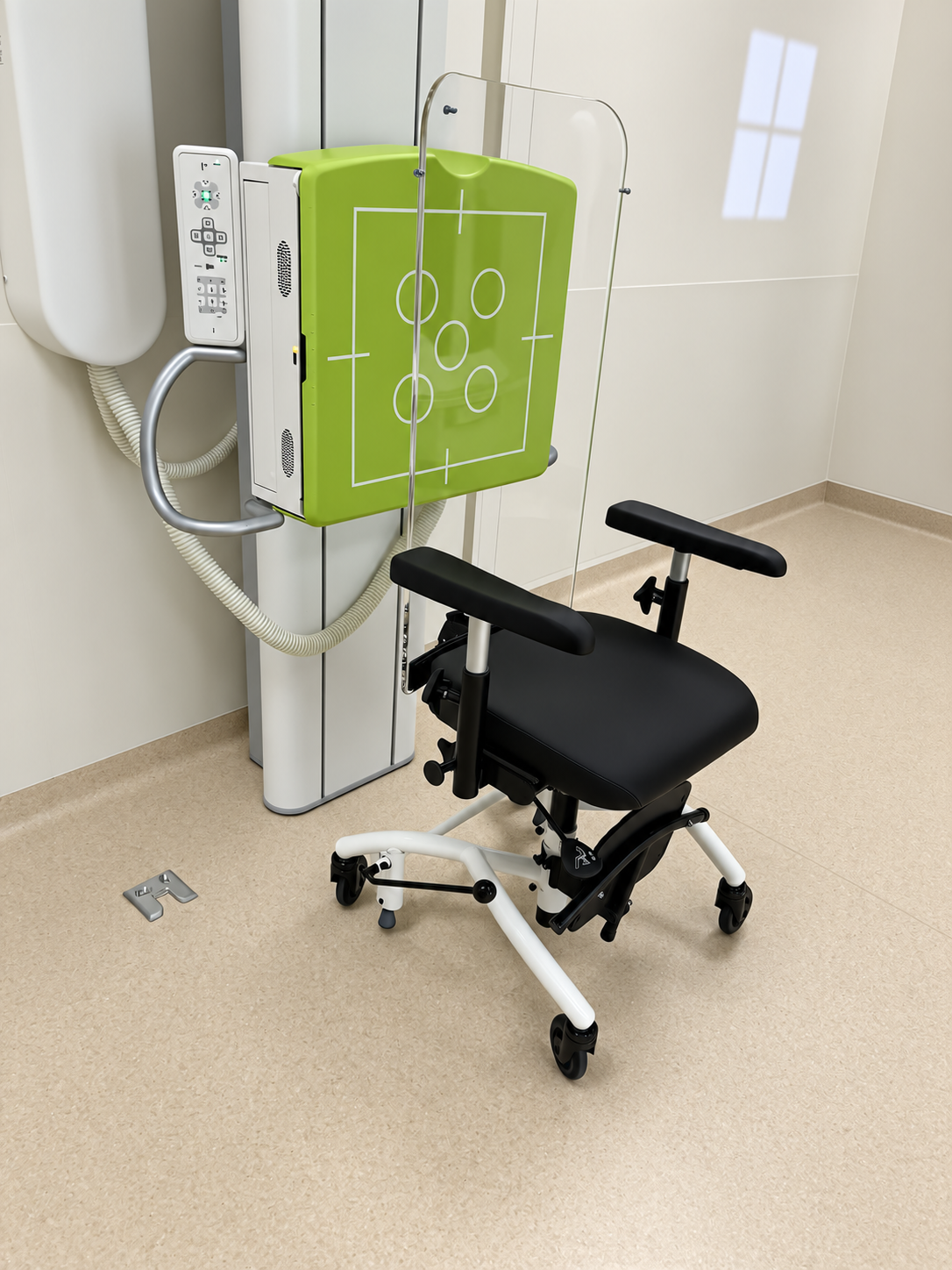

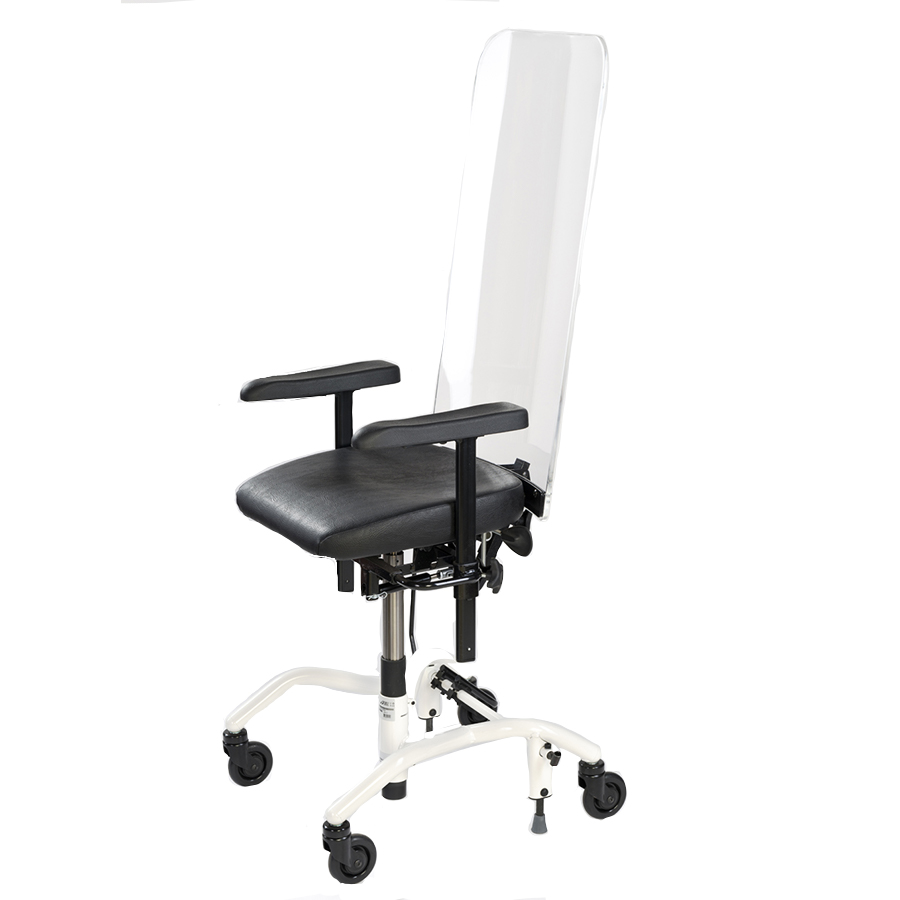

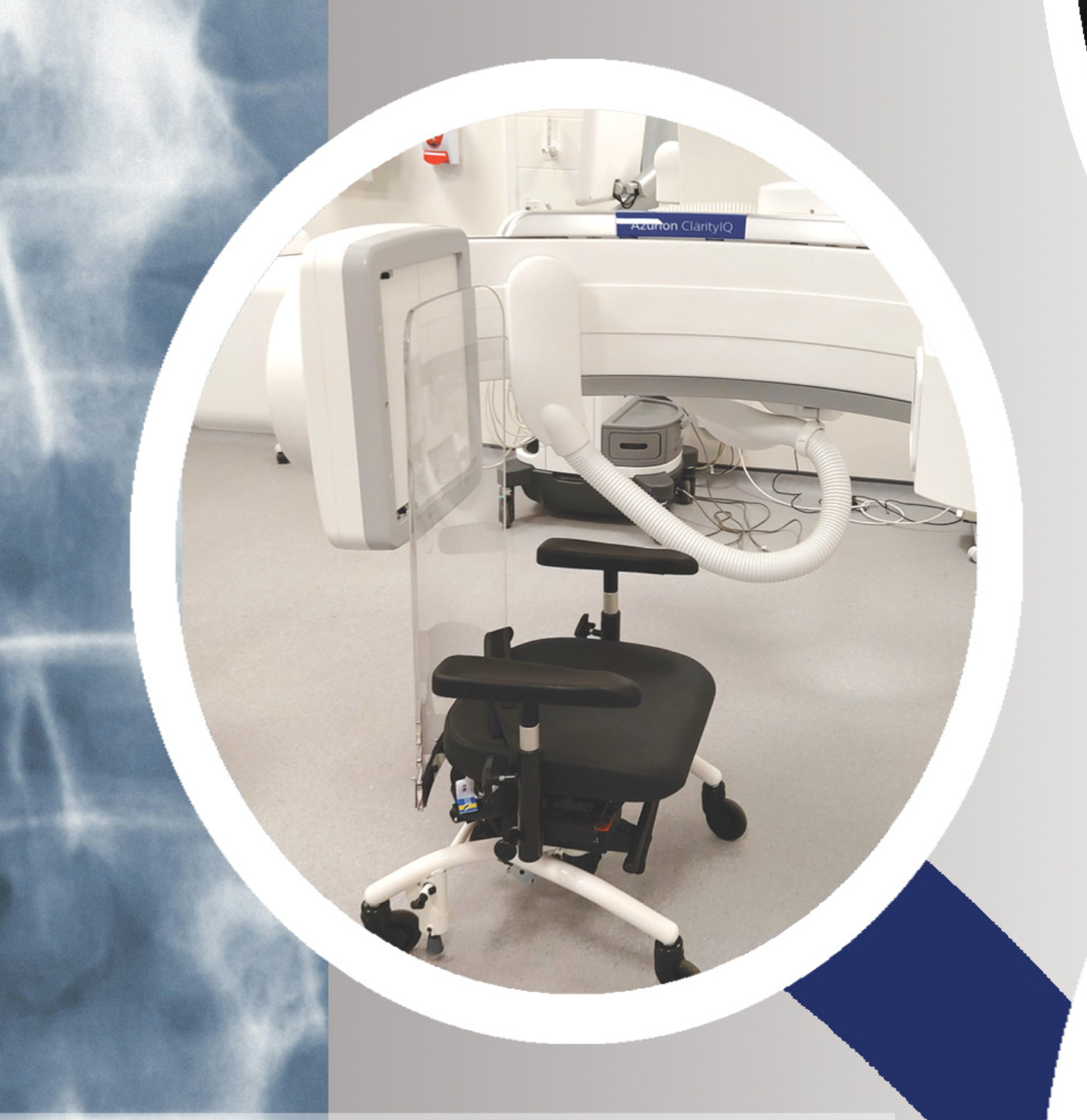

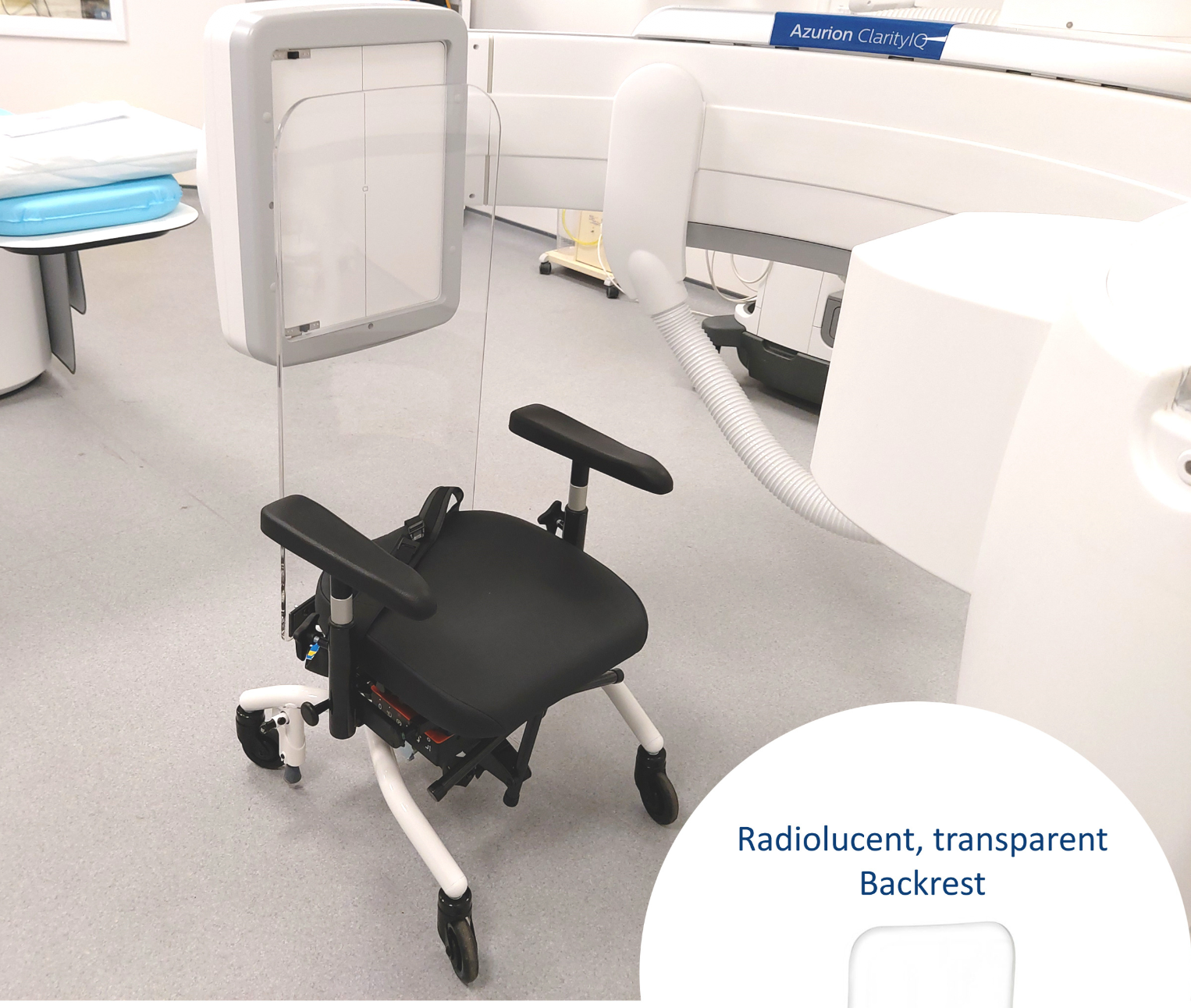

A key feature of the REAL 8100 is its optional radiolucent, transparent backrest, which allows the chair to be used with a standing Bucky system instead of a cassette for certain X-ray procedures. Different backrests, footplates and other accessories are available, allowing the chair to be configured according to individual patient needs and clinical requirements. mercado-medic.co.uk

The chair’s ergonomic design and practical features also support patient transfers. Retractable armrests, available depending on the configuration, can improve access when transferring patients from a wheelchair or patient transport chair. Its manoeuvrable castors, robust underframe and secure braking system help healthcare professionals move and position the chair within the clinical environment.

Developed in collaboration with Swedish radiographers, the REAL 8100 combines functionality, flexibility and patient support in a specialist seating solution for radiology departments and medical imaging facilities. The chair is CE-certified and comes with a 10-year warranty, according to Mercado Medic’s product information.

• Specialist X-ray chair for radiography and medical imaging
• Radiolucent, transparent backrest
• Electric seat-height adjustment via remote control
• Remote operation from a distance of up to 15 metres
• Seat rotation with protractor
• Configurable backrests and footplates
• Retractable armrests available, depending on configuration
• Ergonomic seating design for patient comfort and support
• Designed to assist patient positioning and transfers
• Manoeuvrable castors
• Robust underframe and secure braking system.
• Max user weight 150 kg
• Seat height 40-75 cm
• Seat Tilt
• A 12 Volt system run from a 7.2 A battery enables the chair to be moved around without a need to be disconnected from its power source.
• The chair is EMC-tested at SEMKO and approved in accordance with EN 60601-1-1 and EN 60601-1-2. The plus frame is tested at SP and approved in accordance with EN:1335
• Maximum user weight: 150 kg
• Manufactured in Sweden
• CE-certified medical device
• 10-year warranty

Optional Features and Configurations: The REAL 8100 can be configured to suit different clinical requirements. Available options include:

• Electric seat-tilt adjustment
• Electric backrest adjustment
• Electric brake
• Alternative backrests and footplates
• Retractable armrests

Selecting your preferred upholstery colour at checkout isn’t possible. However, you can contact us before or after placing your order to discuss your choice. Don’t worry if you forget—we’ll reach out to confirm with you!

Estimated delivery time is between 4 to 6 weeks. Seasonal workloads, road conditions, or weather factors—especially in winter—may affect timelines. A precise timeframe will be provided at the time of order placement. If you require delivery by a specific date, please inform us in advance. We only accept orders when we can meet the agreed schedule, and customers confirm our delivery timeframe.

To avoid delays, we recommend placing orders early if you have a strict deadline. Additionally, due to health and safety regulations, drivers are not permitted to carry palletised items inside. Our delivery responsibility extends only to the client’s door.
